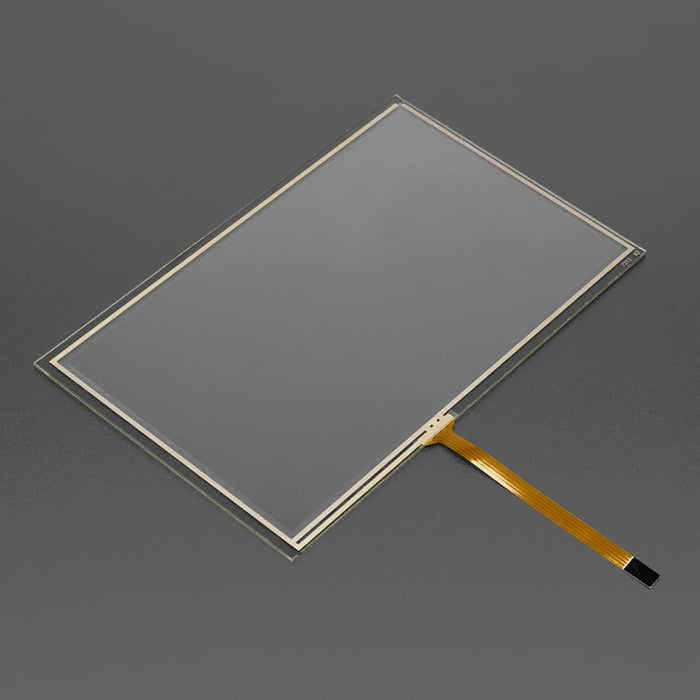

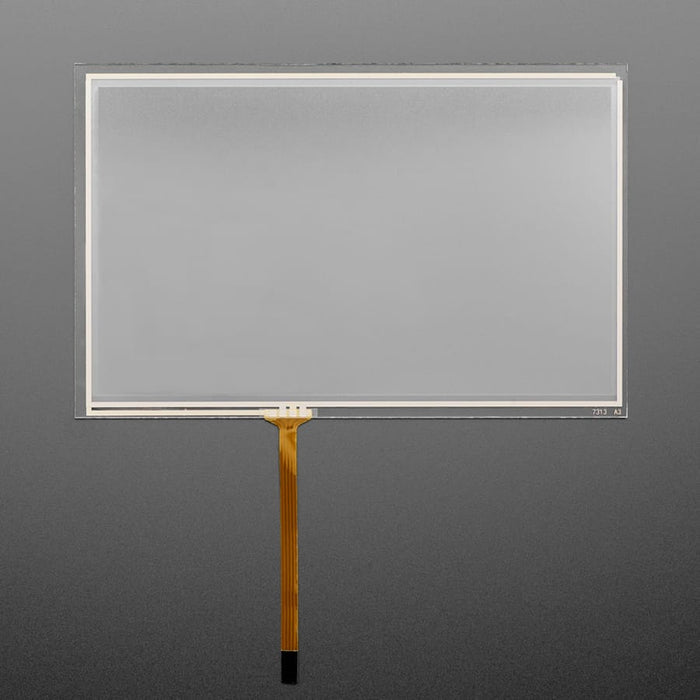

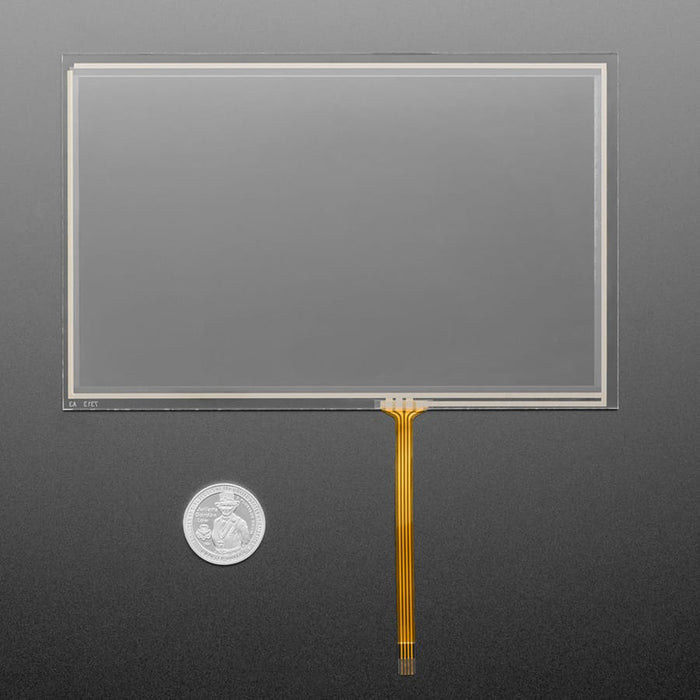

Resistive Touchscreen Overlay - 165mm x 105mm (7" diag.) - 4 Wire

This 7-Inch Resistive Touch Overlay adds touch functionality to compatible TFT displays, providing a simple way to upgrade existing screens for interactive kiosks, control panels, and embedded projects.

If you already have a 7" TFT that is about 165mm x 105mm in size (with a visible area equal to or smaller than ~152mm x 91mm), you can put this glass resistive overlay over it to add a resistive touch screen.

Please note the 7" is the 'nominal' size - which fits many TFT's called 7" displays. Check the inner/outer dimensions in the technical specs to compare against your display.

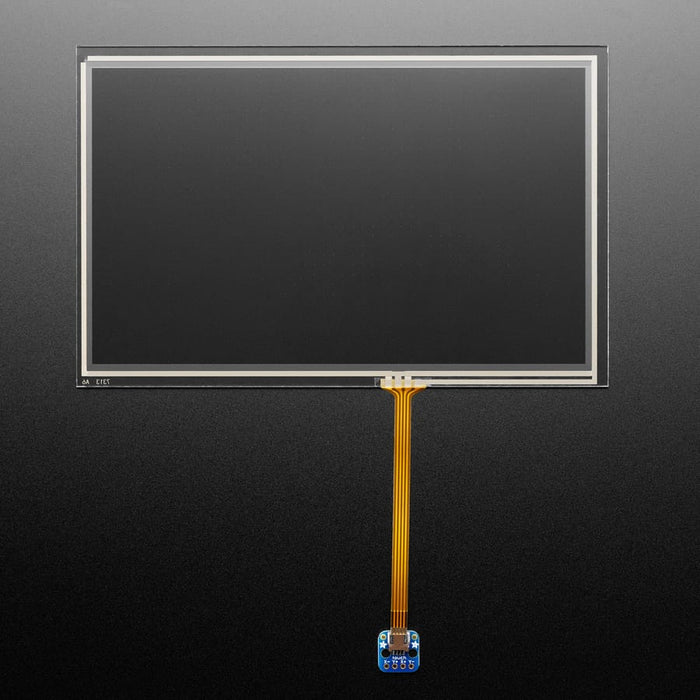

To use, first remove the protective plastic wrap from both sides. Attach to your touchscreen controller (we suggest our AR1100 USB touch adapter if you need USB mouse interface, or the STMPE610 breakout for I2C/SPI) and test to make sure the screen works over all - remember that only one side will work for touch, so flip it over if you can't get it working. Once you know which way is up, and you've got the touch screen talking to your controller, use double-sided tape to attach it to your screen, carefully lining up the outer edges.

Features

• 7" resistive touch screen overlay for existing TFT displays
• Compatible with displays approximately 165mm x 105mm in size
• Visible touch area up to 152mm x 91mm
• Works with AR1100 USB touch adapter for USB mouse interface
• Compatible with STMPE610 breakout for I2C/SPI control
• Easy installation with double-sided tape
• One-sided touch activation
• Includes protective plastic wrap on both sides
• Check display specifications to verify compatibility

Specifications

• Outer Dimensions: 165mm x 105mm
• Inner Dimensions: 151mm x 91mm - make sure your screen visible area is equal or smaller than this number!
• Weight: 55g

Package Contents

• 1x Resistive Touchscreen Overlay - 165mm x 105mm (7" diag.) - 4 Wire
