Miniature Ultra-Bright 8x8 White LED Matrix

The Mini 8×8 White LED Matrix packs 64 bright LEDs into a compact 0.8" square display, making it ideal for icons, animations, scrolling text, and space-constrained breadboard projects.

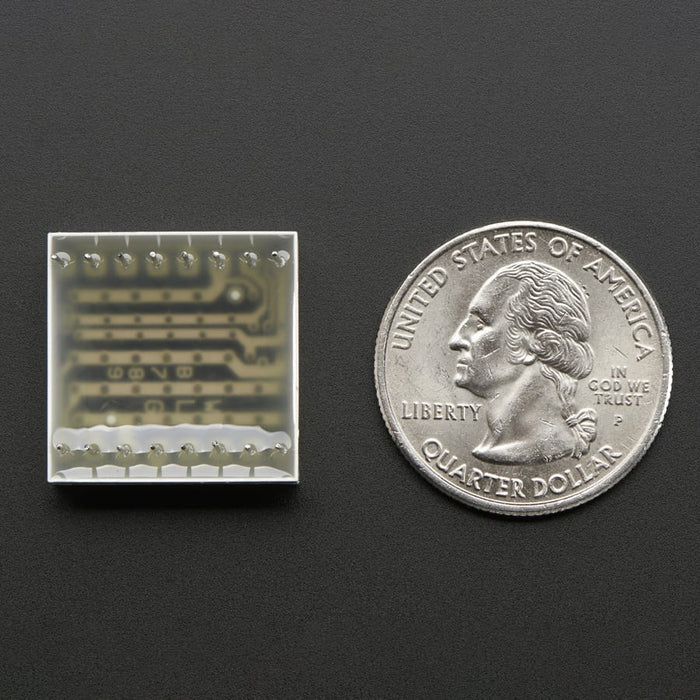

You will squeak with delight when you hold this adorable Adafruit miniature LED matrix. 0.8" square, its got everything a big LED matrix has, but bite-sized!

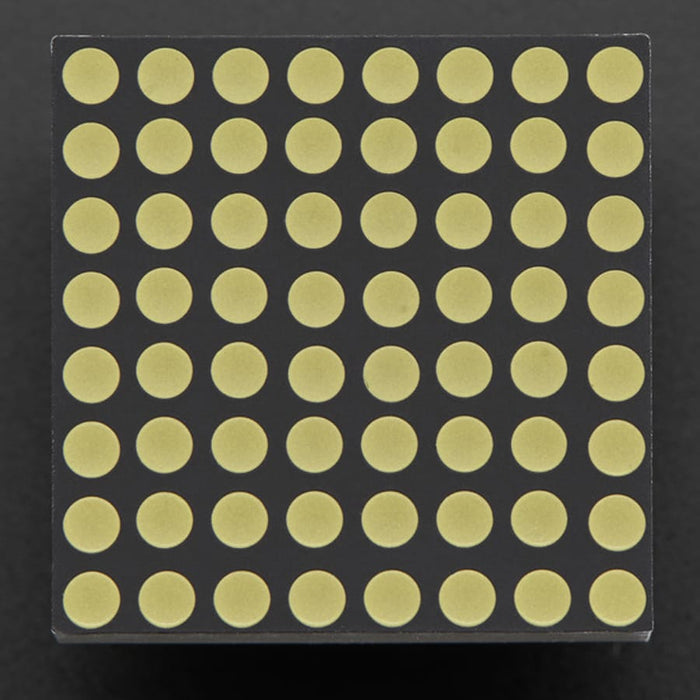

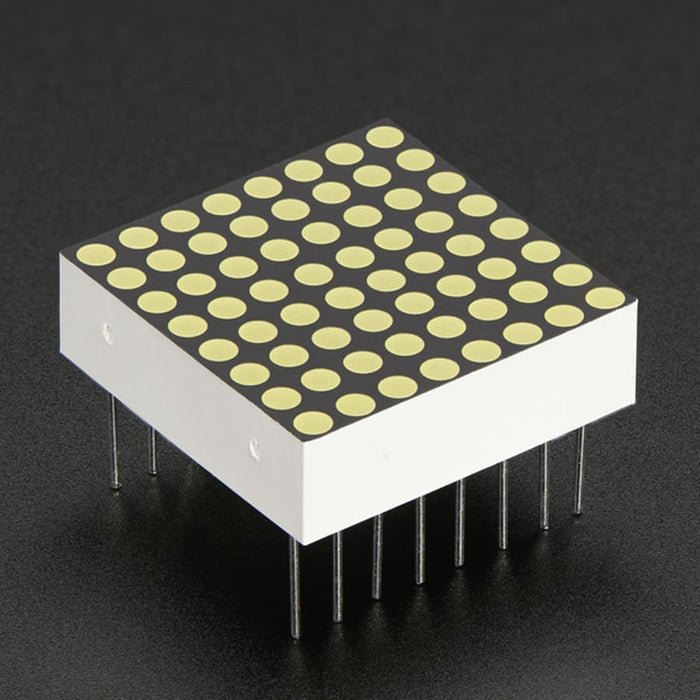

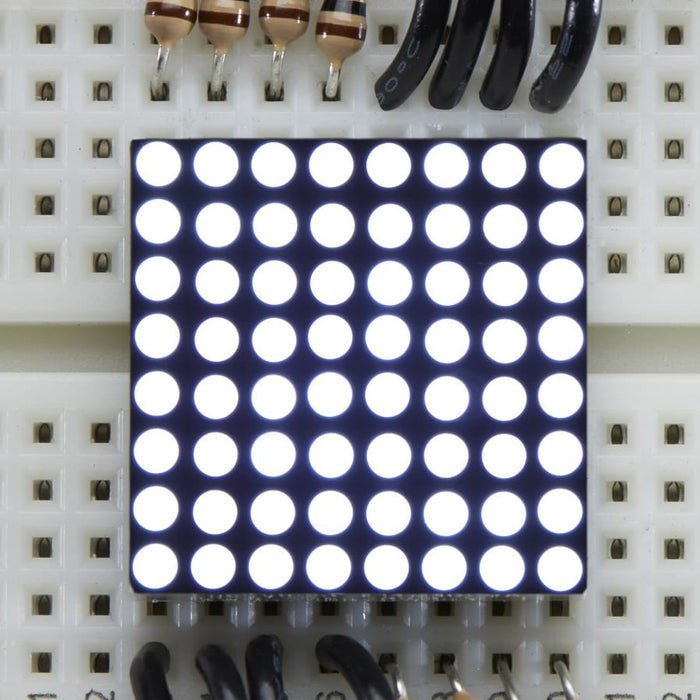

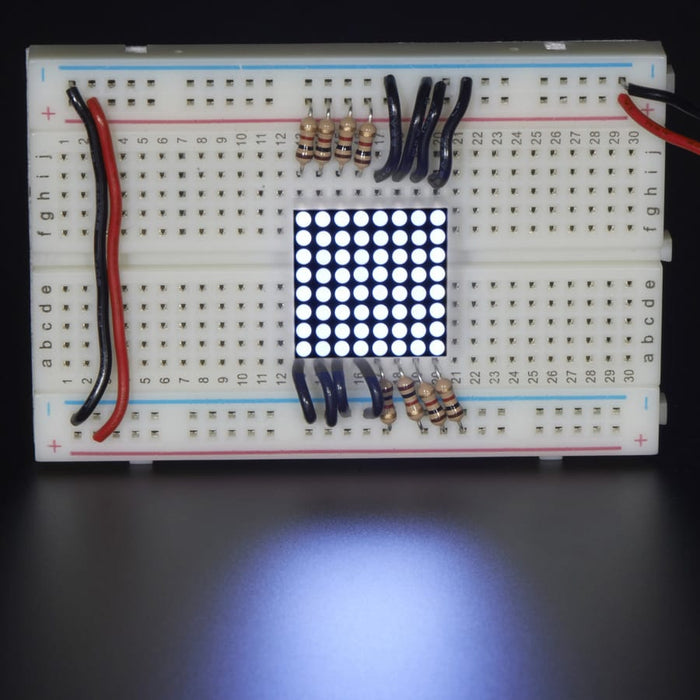

64 bright white LEDs are contained inside the plastic body, in an 8x8 matrix. There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with plenty of space to wire it up

Since the display is in a grid, you'll need to 1:8 multiplex to control it. We suggest either using a 74HC595 and TPIC6B595 (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single MAX7219 which will do the multiplexing work for you.

Please note: Breadboard and wires not included.

Features

• 0.8" square miniature LED matrix display
• 64 bright white LEDs in 8x8 matrix configuration
• 16 pins total (8 pins each side) with 0.1" spacing
• Compatible with breadboard integration
• Requires 1:8 multiplexing control
• Compatible with 74HC595 and TPIC6B595 shift registers
• Compatible with MAX7219 LED driver IC

Specifications

• Weight: 0.9g

Resources

• Datasheet
• Arduino playground
• Learn

Package Contents

• 1x Miniature Ultra-Bright 8x8 White LED Matrix

Please note: Breadboard and wires not included.
