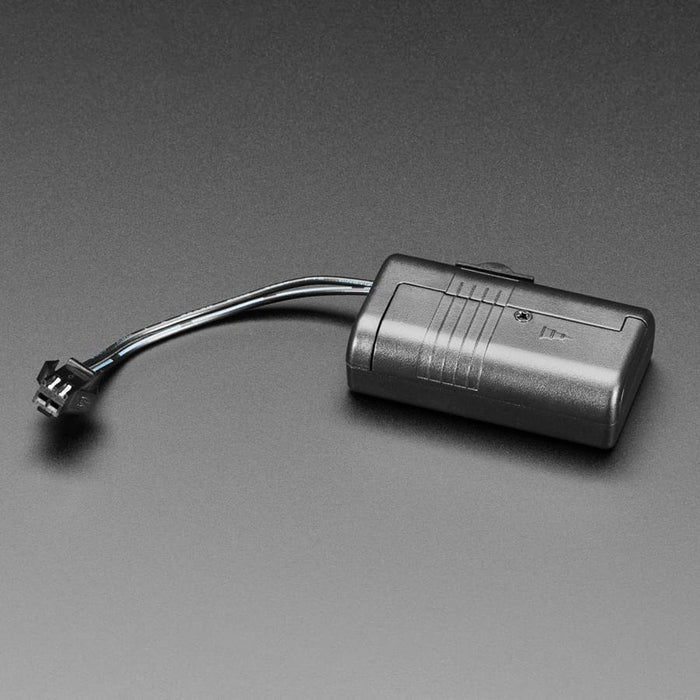

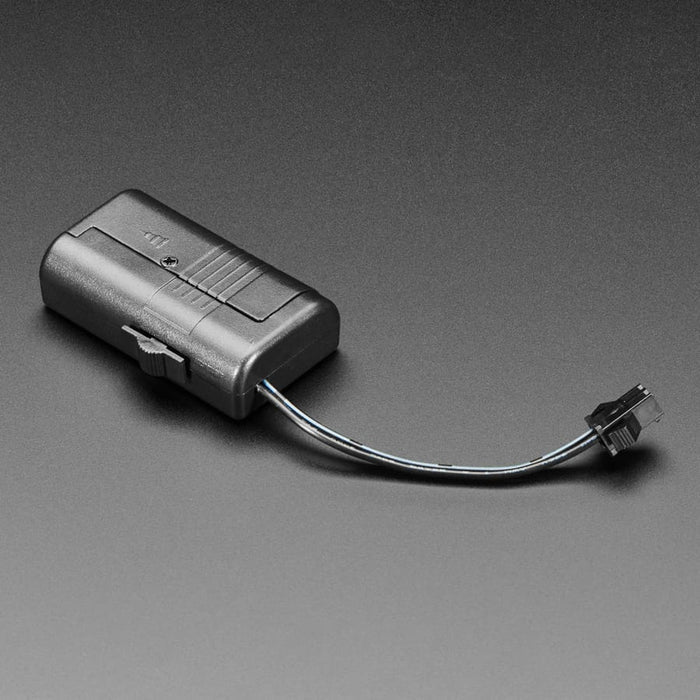

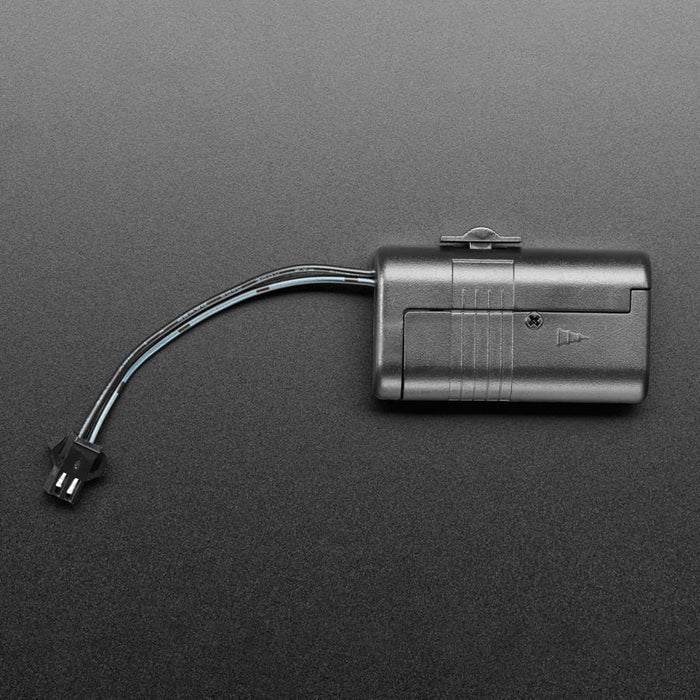

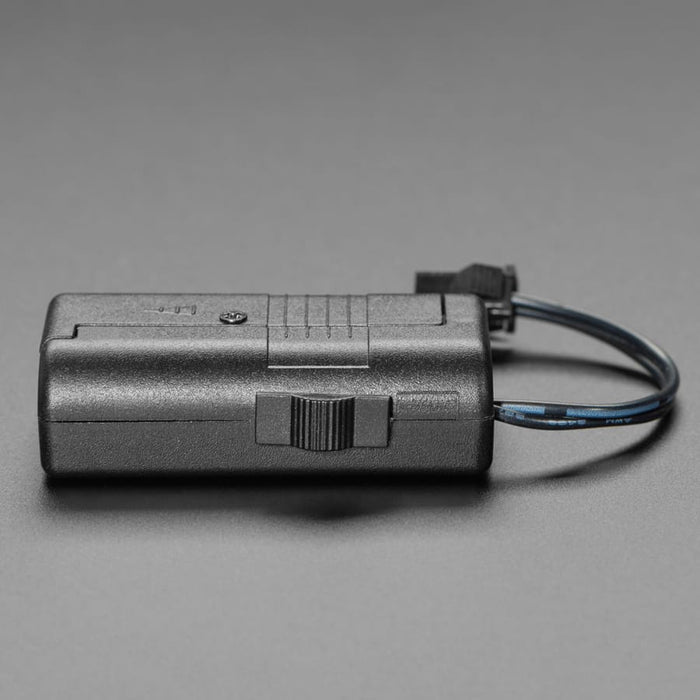

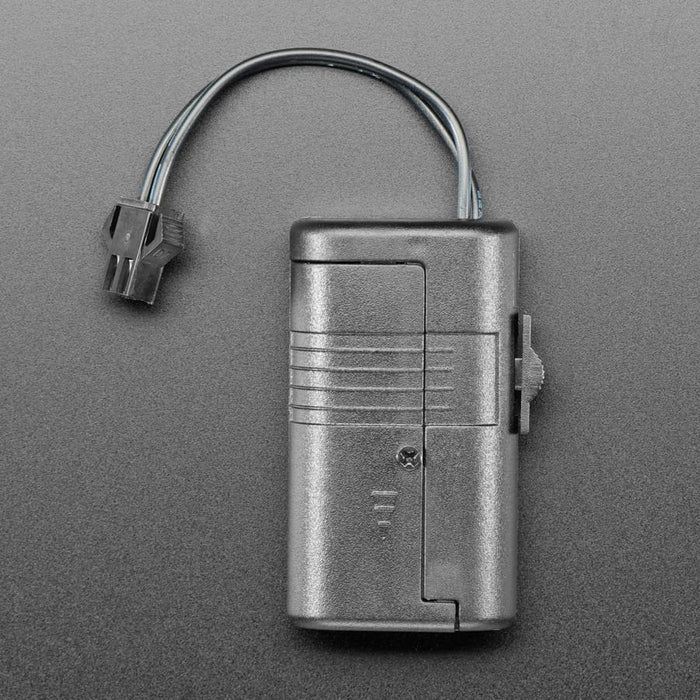

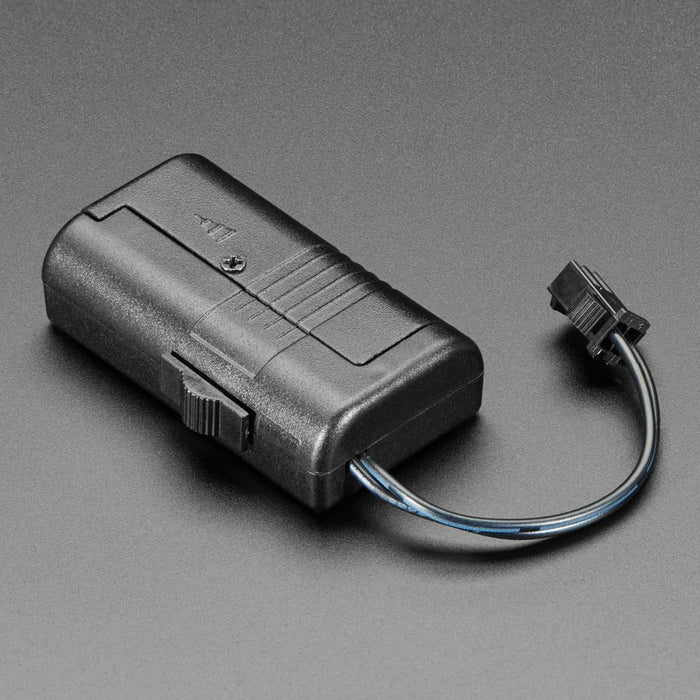

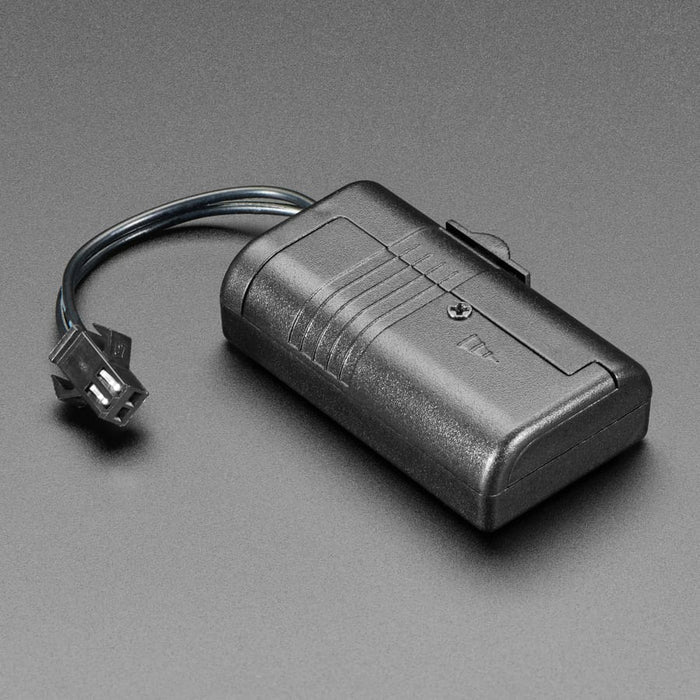

EL Wire 1xAAA Mini Inverter

This Pocket EL Wire Inverter runs from a single AAA battery and provides a simple way to power short lengths of EL wire or EL tape, with built-in steady, blink, and off modes for portable lighting projects.

A really tiny portable inverter for EL wire. Powers off of a single AAA battery (not included!), it can drive up to 50cm/20inches of our high-brightness EL wire or 10cmx1cm long piece of EL tape for 3 hours (or longer if the EL wire is less than 50cm long). There is a switch on the side for selecting steady/blink/off modes. Comes with a 2.5mm pitch female JST connector. Like all EL inverters we've used, the 2000 Hz oscillation is slightly audible.

This inverter can only power 10cm (2.5inches) of 1cm wide tape or a 3cm x 3cm/1.25" x 1.25" piece of EL panel.

To connect a piece of EL wire to this, you'll want a male connector wire if it isn't already attached.

Soldering to EL wire is a little tricky but luckily we wrote a detailed step-by-step tutorial!

Features

• Portable inverter powered by single AAA battery (not included)
• Drives up to 50cm of high-brightness EL wire for 3 hours continuous operation
• Powers 10cm x 1cm EL tape or 3cm x 3cm EL panel
• Three selectable modes: steady, blink, and off

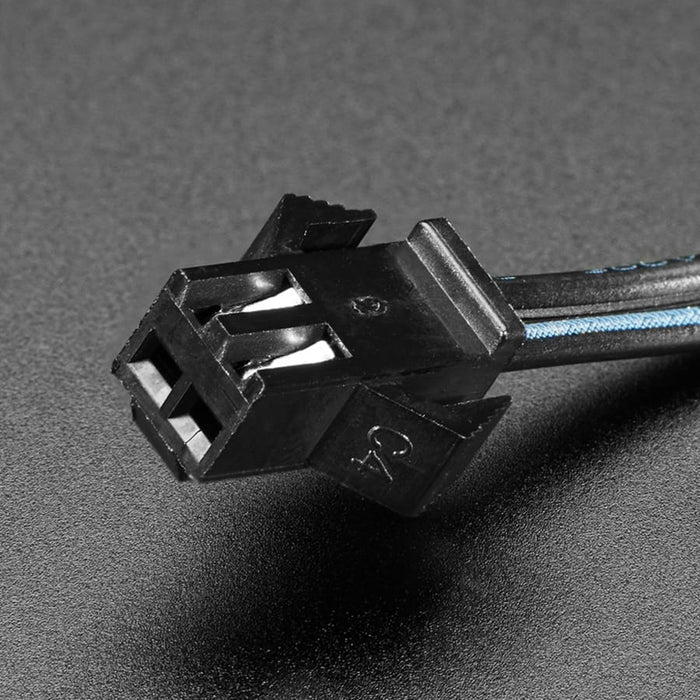

• 2.5mm pitch female JST connector
• Compact and lightweight design
• 2000 Hz oscillation produces slight audible tone
• Male connector wire required for EL wire connection (if not pre-attached)
• Soldering guide included for EL wire connection

Specifications

• Size: 26.52mm / 1" x 50.47mm / 1.98" x 14.5mm / 0.57"
• Cable Length: 82.55mm
• Weight: 14.84g

Revision History

• As of June 25, 2021 - Wanyu (the original supplier) is no longer in business so we have changed to a different supplier. The quality and functionality are the same.

Package Contents

• 1x EL Wire 1xAAA Mini Inverter

AAA Battery not included.
