Configurable Spring Terminal Blocks - 3 Pin 0.1" Pitch R/A - Pack of 5

The Spring Terminal Blocks (Right Angle, 3-Pin, Pack of 5) provide a quick, solder-free way to connect wires to your projects, with reconfigurable snap-together sections and secure spring-loaded terminals for 20–26 AWG wire.

Spring terminal blocks will simplify your wiring and make your project more rugged.

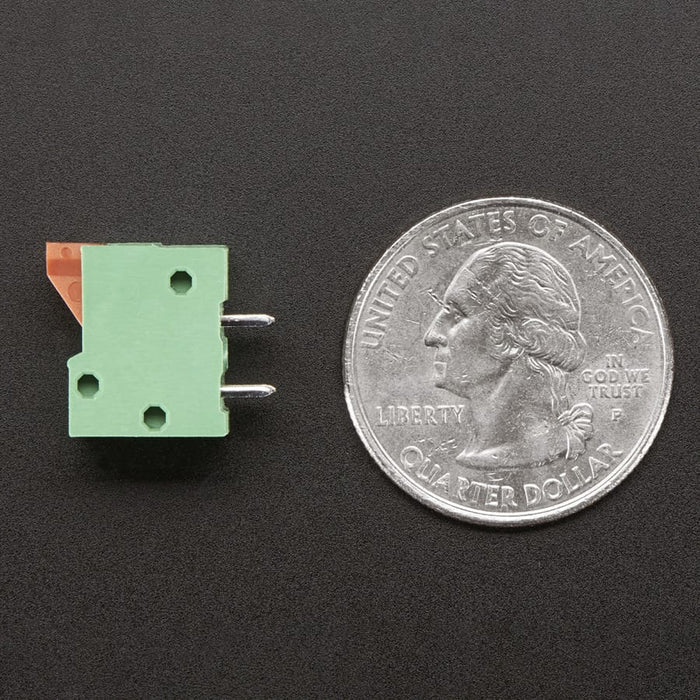

Instead of soldering wires to your perf board, solder in these 0.1" pitch terminal blocks. There's a little spring contact so you can pull back on the plastic bit and slip in your 20 to 26 AWG solid or stranded-core wires. Each terminal block is electrically isolated from those next to it. Each block also has two solder pins per contact for strong mechanical strength when soldering in place.

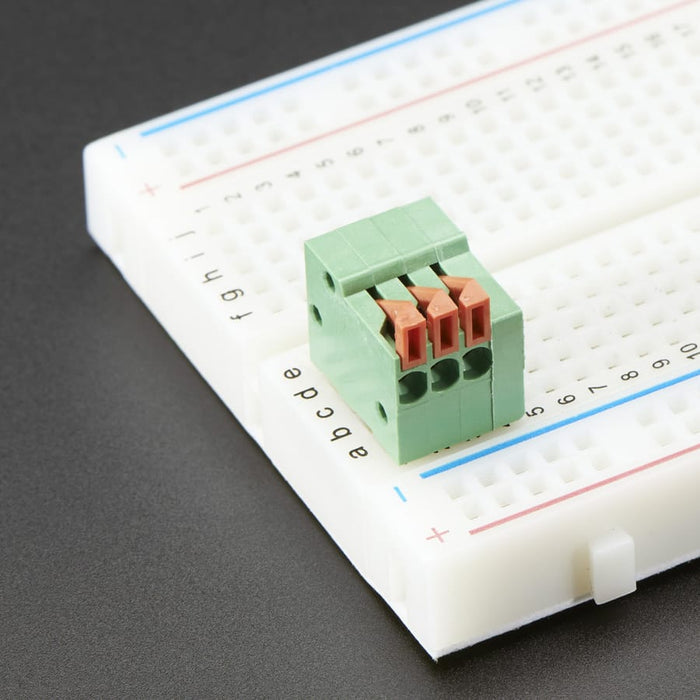

These are the "right angle" style - the wires go in from the side.

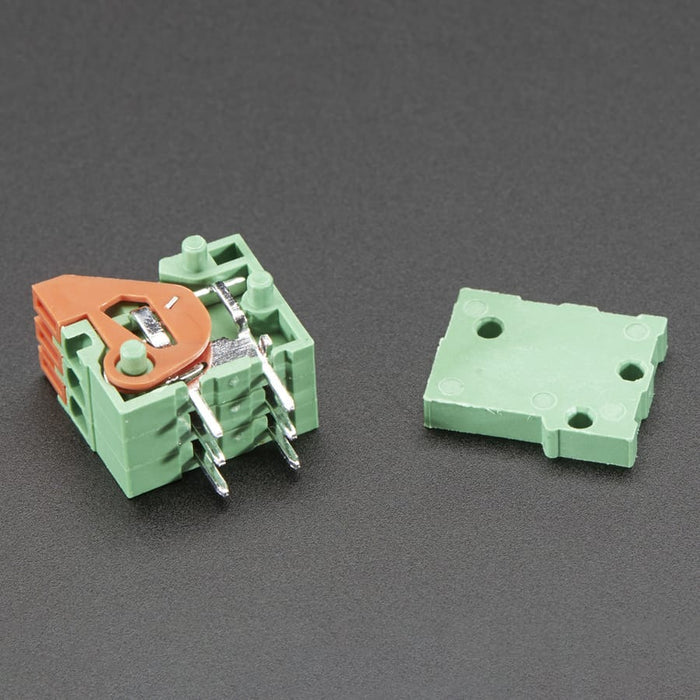

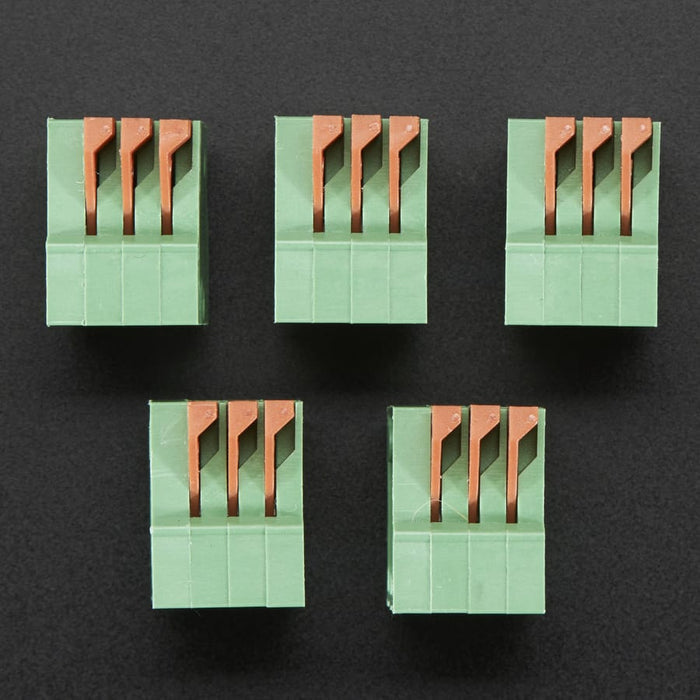

What we like about these terminal blocks is that they are re-configurable! The pack comes in a set of 5 pieces of 3-pin blocks. However, by carefully removing the end cap on each one you can snap together any number and then reattach the end cap. So you could use this to have 5 x 3 pin contacts, or 1 x 15 pin contact, or 3 x 5 pin contacts, etc. Keep these around in your toolkit, and arrange them as needed!

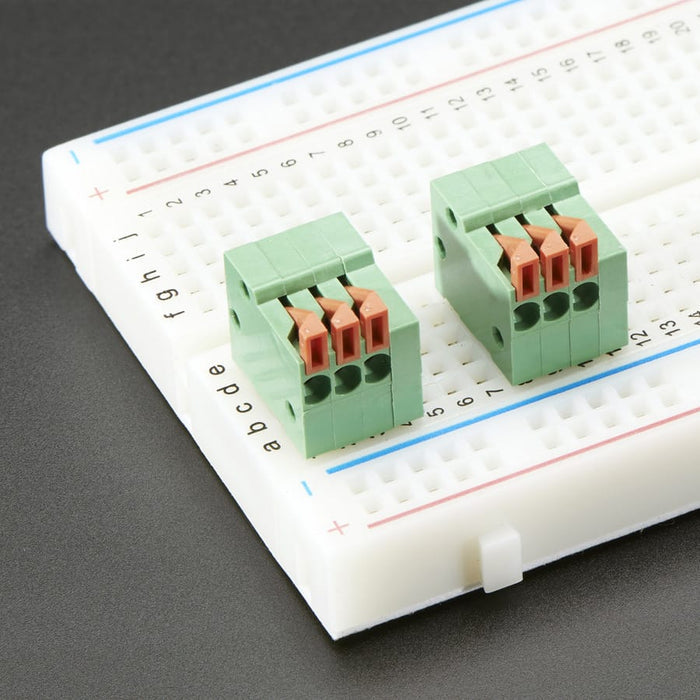

Please note that the breadboard is not included.

Features

• 0.1" pitch terminal blocks for perf board soldering
• Spring contacts for secure 20-26 AWG solid or stranded-core wire insertion
• Right-angle design with side wire entry
• Electrically isolated individual contacts
• Dual solder pins per contact for strong mechanical strength
• Reconfigurable - snap blocks together for custom pin counts
• Set of 5 x 3-pin blocks included
• Simplifies wiring without soldering individual wires
• Rugged construction for robust projects

Specifications

• Weight: 1.73g each

Resources

• Product datasheet

Package Contents

• 1x Configurable Spring Terminal Blocks - 3 Pin 0.1" Pitch R/A - Pack of 5
