Conductive Hook & Loop Tape - 3" long

This Conductive Hook & Loop Tape is silver-coated, fully conductive, easy to sew or cut, and ideal for wearable projects such as switches or sensors. Each order includes 3” of both halves.

Conductive hook & loop tape is just like the stuff you've seen on jackets, clothes, shoes, and bags, but is coated with silver to make it fully conductive. Originally this was designed to the manufacture of static-safe clothing, but its great for wearable applications as well. For example an on-off switch or sensor.

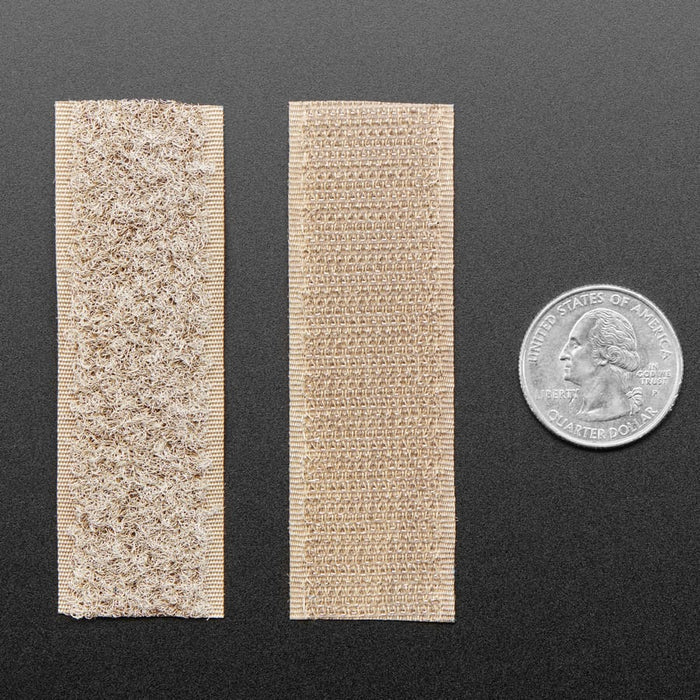

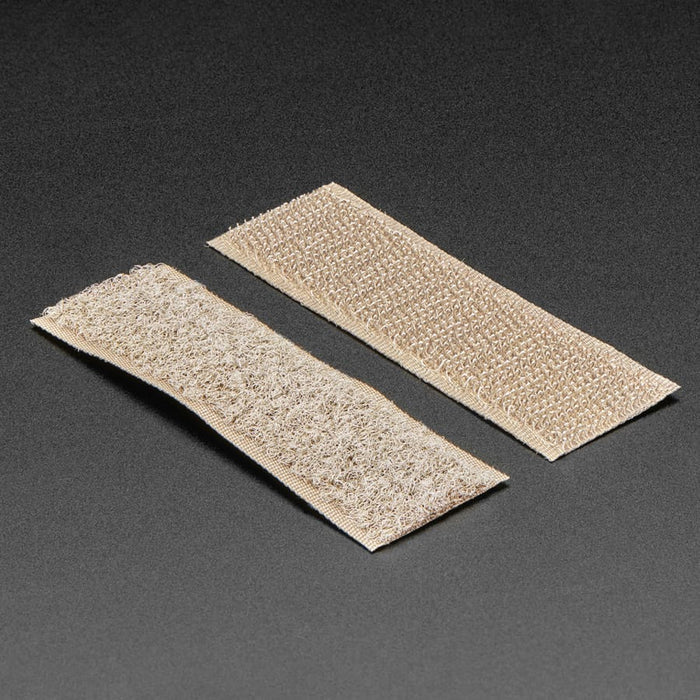

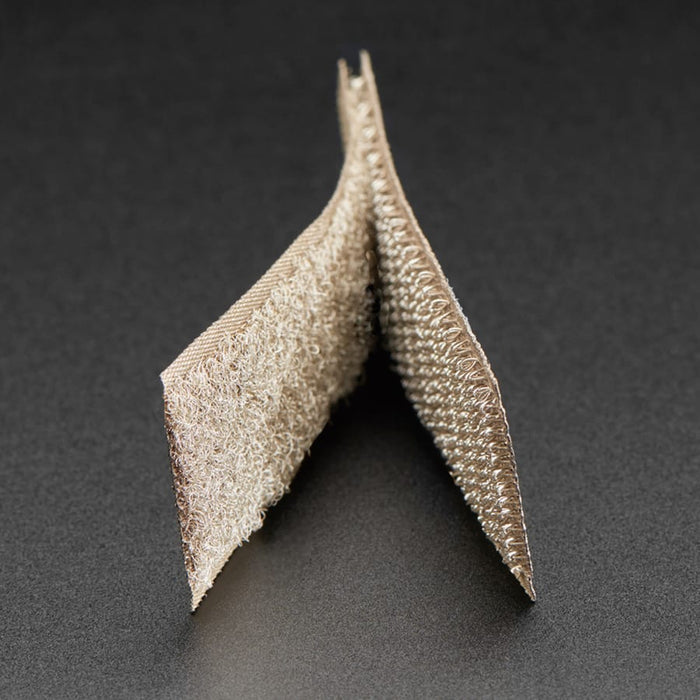

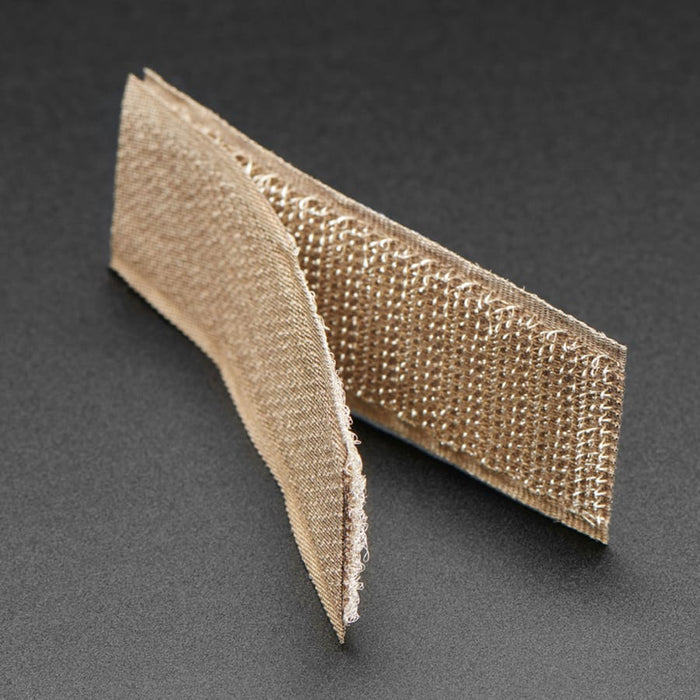

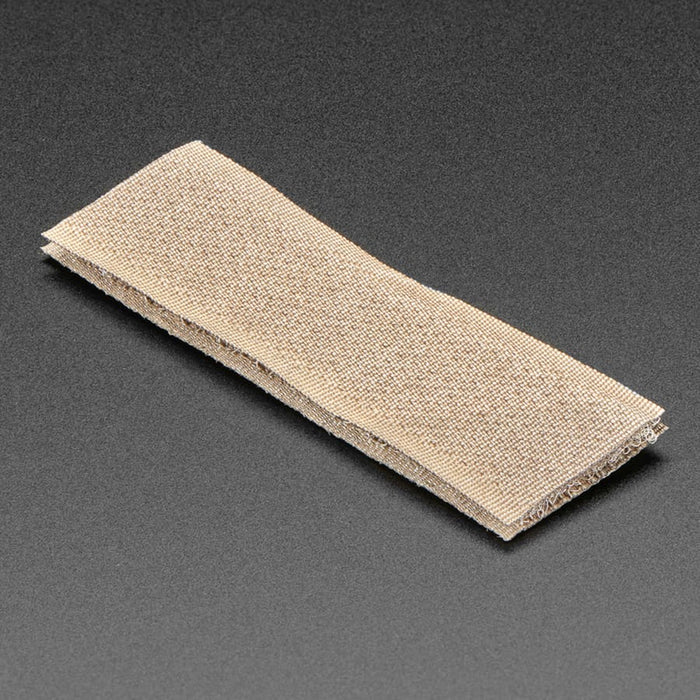

Each order ships with three inches of BOTH halves, its easily sewn or cut.

Features

• Silver-coated conductive hook & loop tape
• Designed for static-safe applications and wearables
• Can be used as an on-off switch or sensor
• Three inches each of hook and loop included
• Easy to sew or cut

Specifications

• Expected cycle life: 5000 openings/closings
• Shear strength: 12.3 psi (new) / 6.7 psi (after 5000 cycles)
• Peel strength: 1.2 piw (new) / 0.8 piw (after 5000 cycles)
• Weight: 0.15 oz/in²
• Weight of 3" piece: 1.38g
• Mated thickness: 1/8 in
• Resistivity: Hook: 1.8 Ohm per sq, Loop: 1.4 Ohm per sq, 0.8 Ohm through mated closure

Package Contents

• 1x Conductive Hook & Loop Tape - 3" long

Each order ships with three inches of BOTH halves.
